Cape Cod Biochemical Company and Septic Contractors, Partners Since 1976

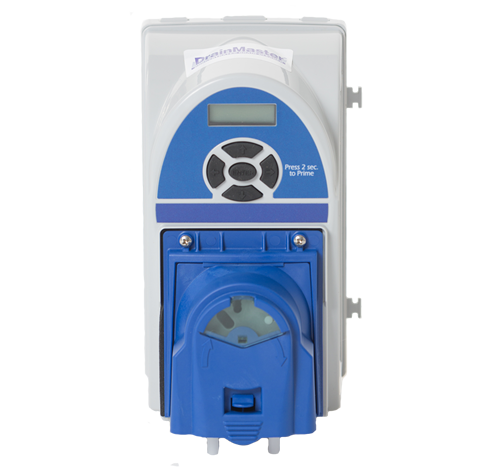

DrainMaster® Pump
SPECIFICATIONS:
DIMENSIONS:
ENCLOSURE:
ELECTRICAL:
PUMP:
PROGRAM TIMER:
MOUNTING:
INSTALLATION: DrainMaster® Application
-
Follow manufacturer’s installation instruction included with unit.
To install in DrainMaster® 5-gallon pail:
- 1. Remove safety caps from spout on lid of pail.
- 2. Remove black, screw-on resealing cap.
- 3. Pull ring and remove inner spout cap.
- 4. Locate ring of plastic on spout ½” below end of spout.
- 5. Using a sharp knife cut spout just below the ring
- 6. Break apart the three sections of snap-together dip tube and snap sections together to make a single 17 5/8” tube.
- 7. Push the assembled tube through the spout, slotted end first (slotted end goes to bottom of pail, flush side protrudes approximately 3” above pail lid. This will fit tightly.)
- 8. Insert square plastic piece with compression fitting into protruding end of dip tube.
- 9. Connect one end of tubing to dip tube compression fitting and other end to compression fitting on supply side of pump.
